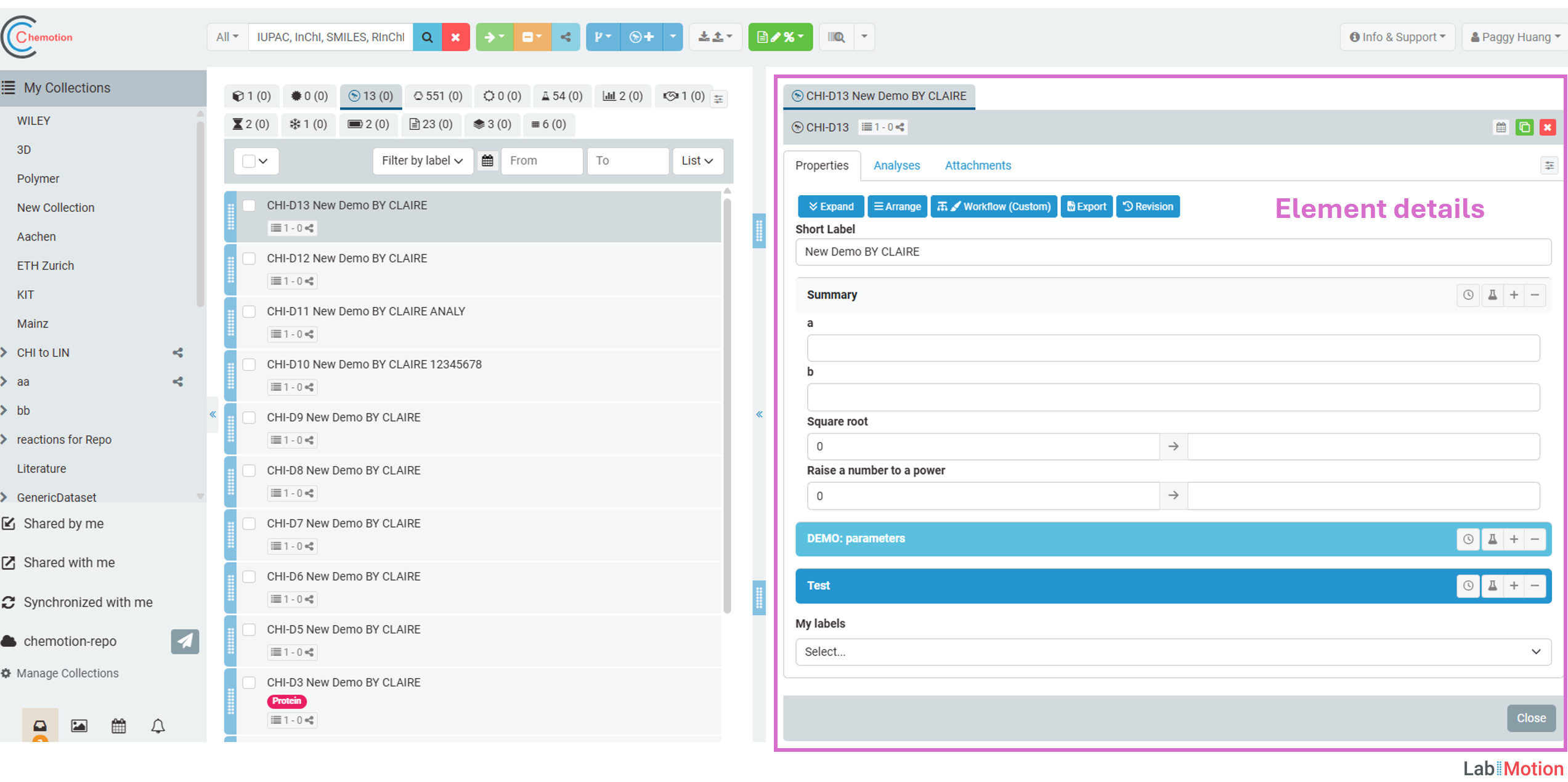

Details
The detail modal displays the primary content of the element.
Reader: UserDetails modal for elements
The details of the element are generated from the template designed by the designer. Clicking on a desired element from the list opens the details modal, displaying the 'Properties' tab by default.
Properties tab
The Properties tab serves as the primary section for an element. It contains essential information and allows users to drag elements, samples, or molecules from the element list.
By default, the first layer is expanded. An Expand/Collapse button is available to expand or collapse all layers simultaneously, making it easier to display the full content at once or to quickly hide sections and locate the desired layer.
User - Expand/Collapse Layers in Element Details
Analyses tab
The Analyses tab enables users to add analyses containing analytical data. In the Content field, users can input experimental results and upload experimental datasets. Users can then select the appropriate Type (Chemical Methods Ontology) from the provided list. For more details, please refer Ontology. The uploaded files can be converted to spectra format files according to the converter profile.
Attachment tab
The Attachment tab allows users to attach additional files/images to this element. If a user uploads images in the Attachment tab, the first image will be shown in the list.
By uploading Word files, Excel files, and presentation files, you can directly edit the files using the OnlyOffice service.

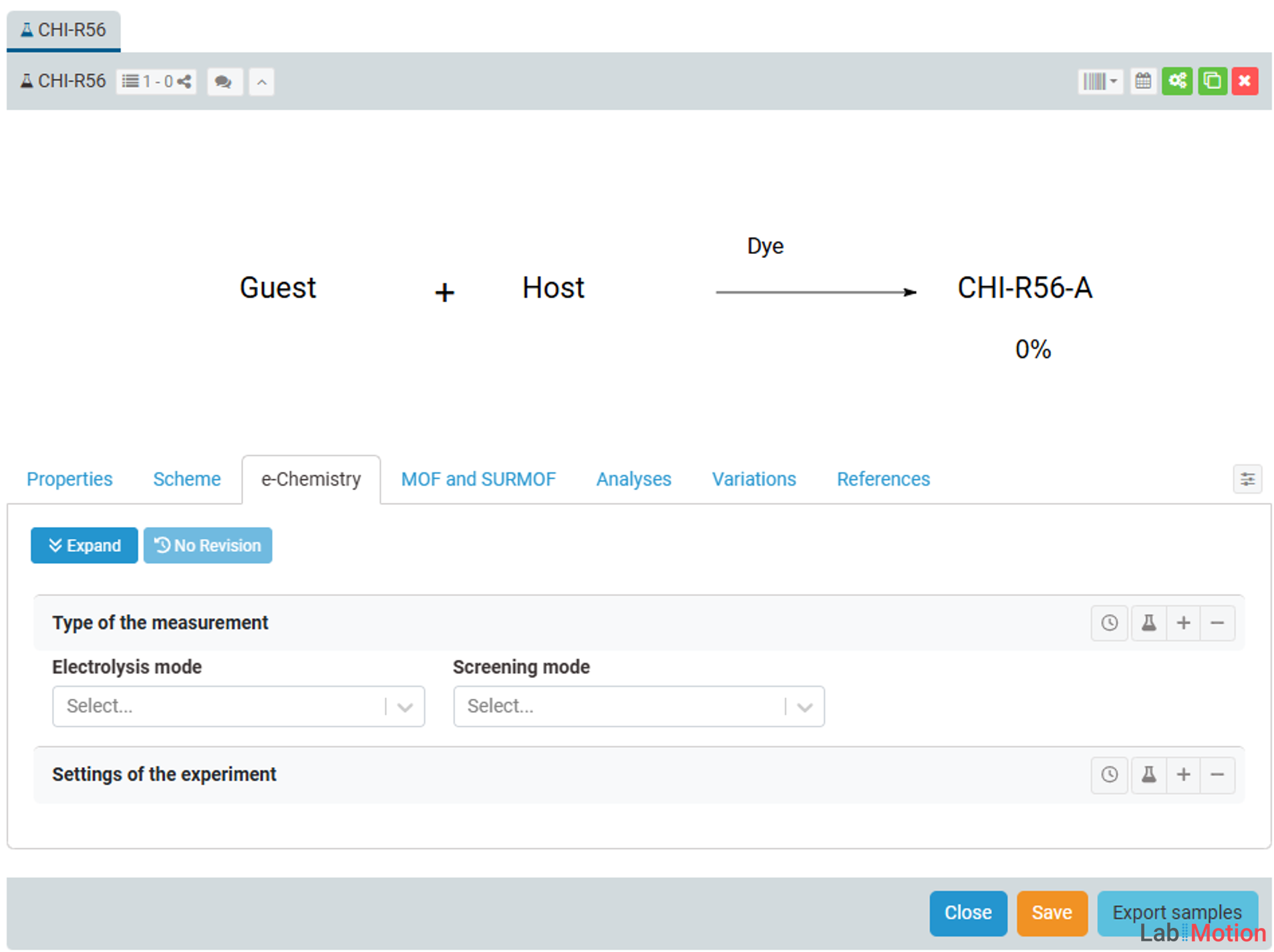

Segments tab
If segments are released and activated for this element, each will appear as its own tab, named according to the segment (for example, e-Chemistry tab, MOF and SURMOF tab). These tabs display the specific content and data defined in each segment.
For more details, please refer to the Segments section.
