Cyclic Voltammetry

Supported file formats

For Cyclic Voltammetry analysis, we currently support JCAMP-DX files (*.jcamp, *.dx, *.jdx), zip (in BagIt format) files.

How to​

  1. To upload and view your data, you can follow this instruction.

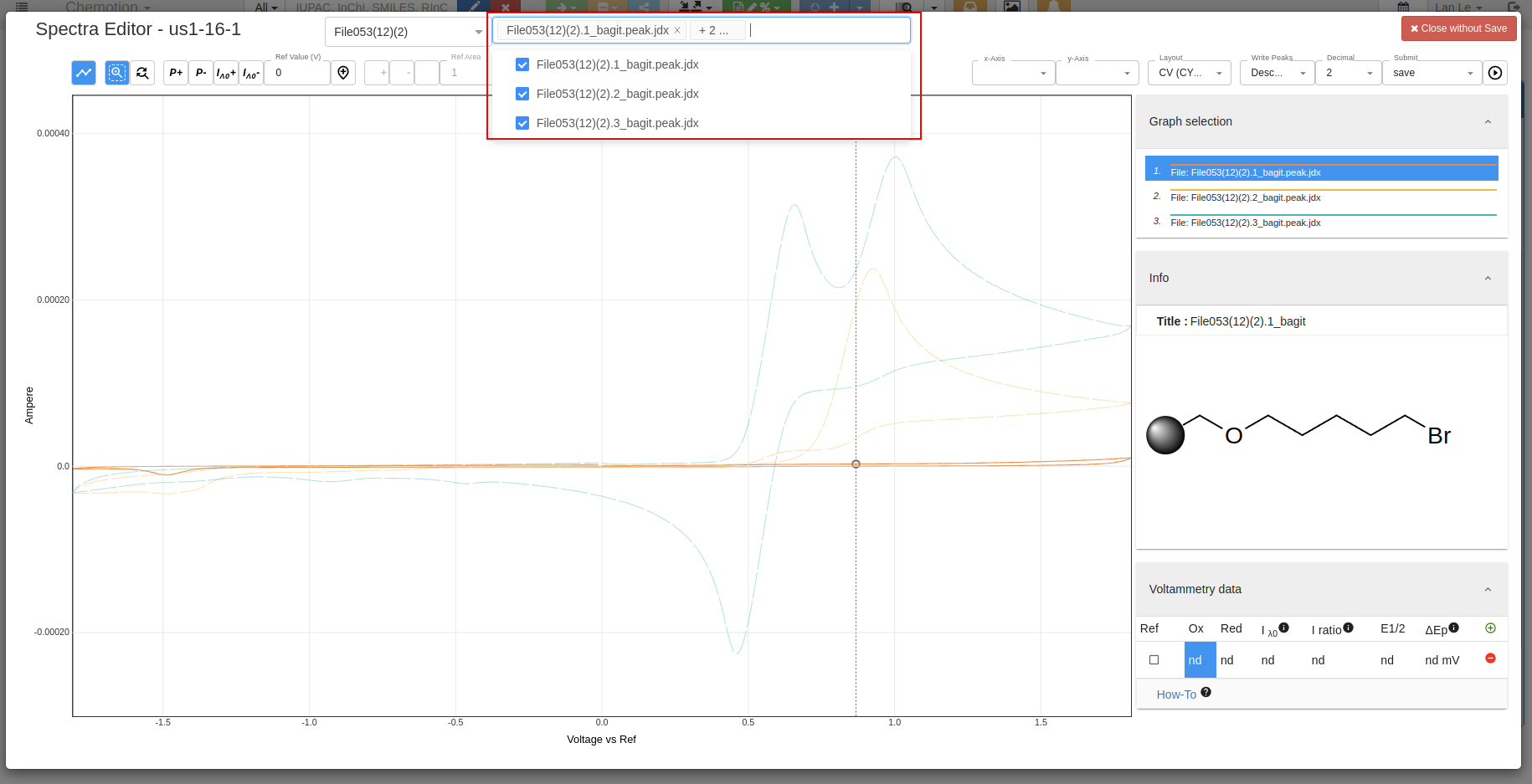

  2. Select which spectrum that you want to view: chemspectra cv select curve

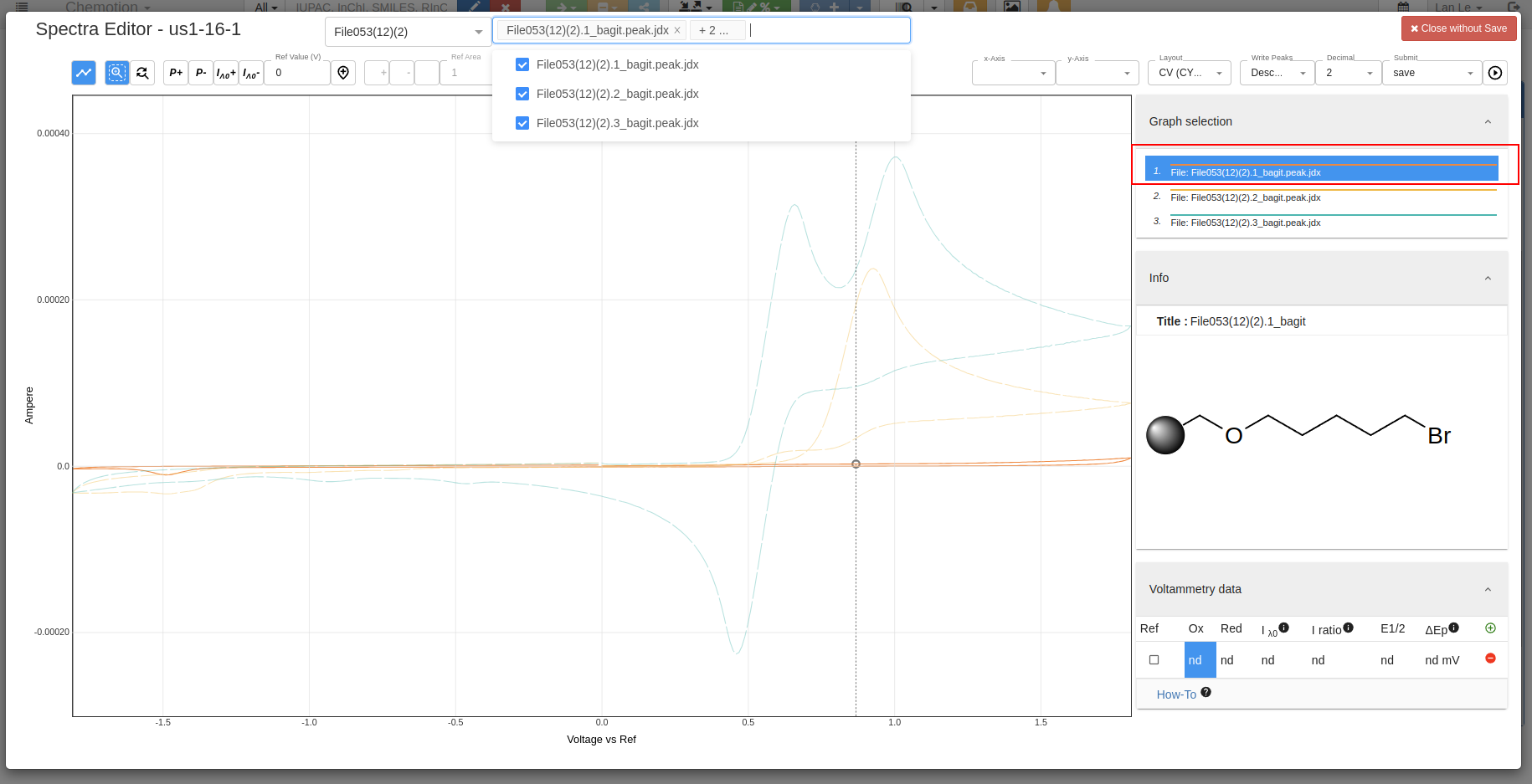

  3. Select which spectrum that you want to work with: chemspectra cv select curve to work

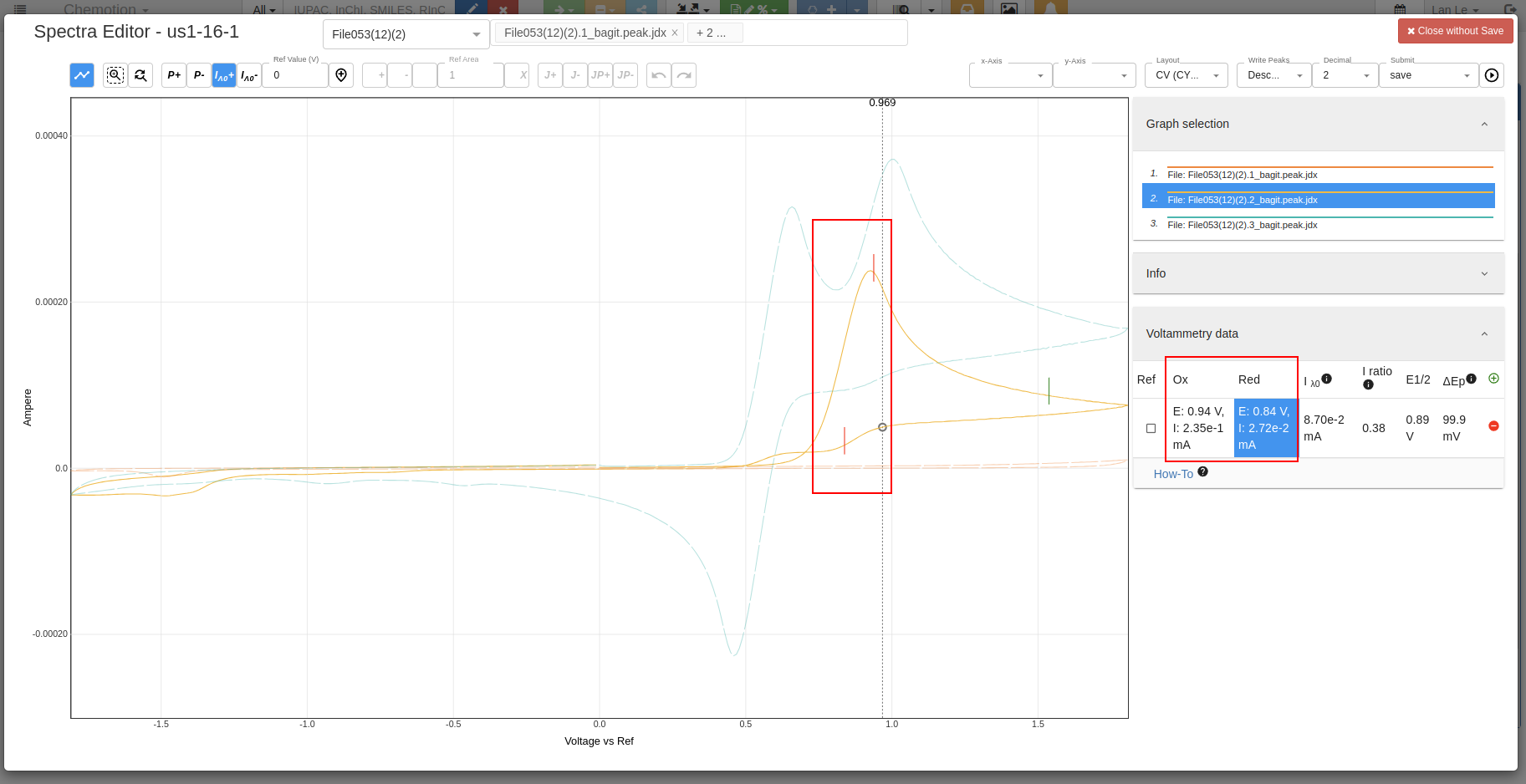

  4. Select to add max and min peaks: chemspectra cv add peaks

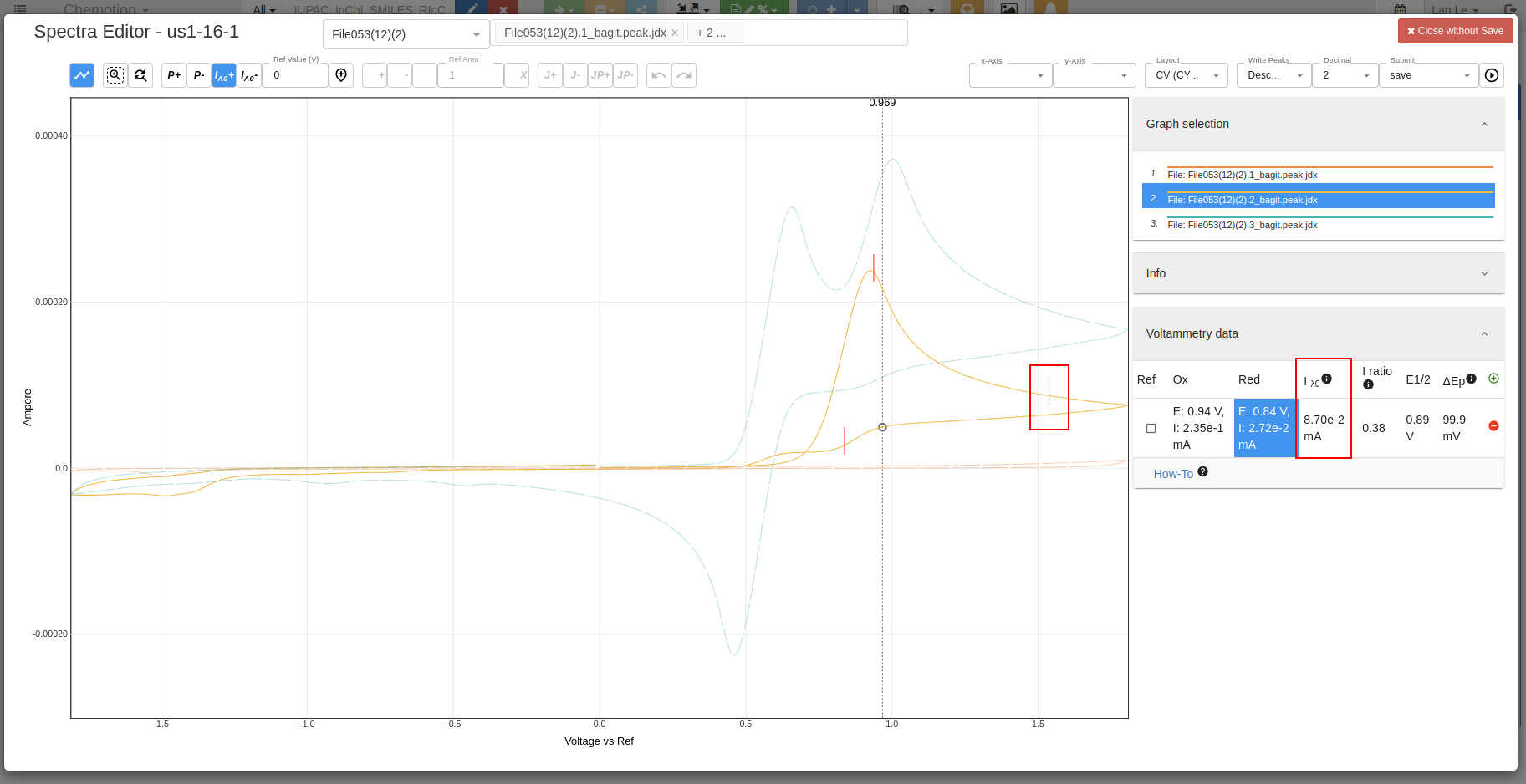

  5. Select to add peckers: chemspectra cv add peckers

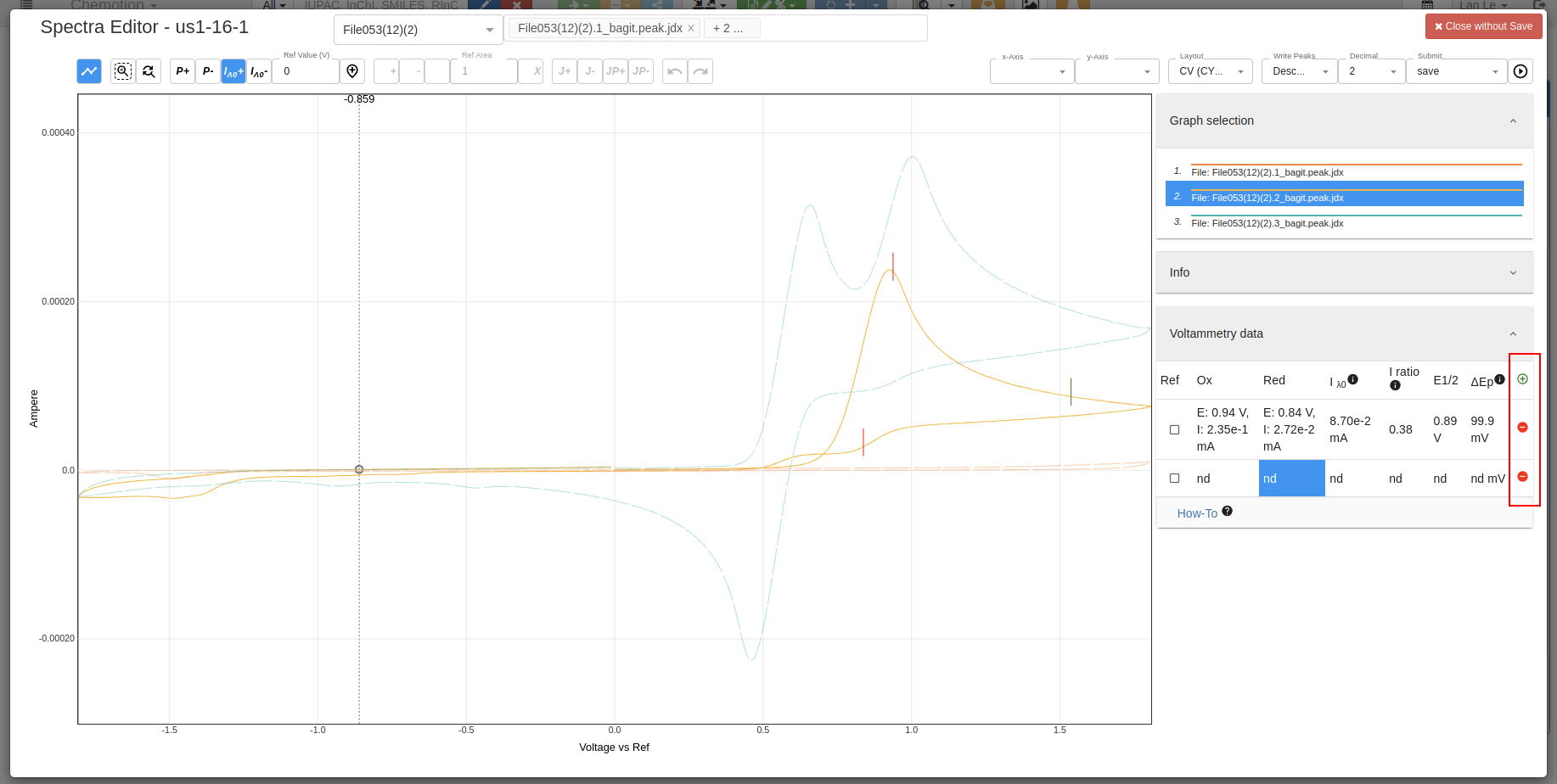

  6. Add or delete peaks: chemspectra cv add or delete peaks

  7. Add reference value:

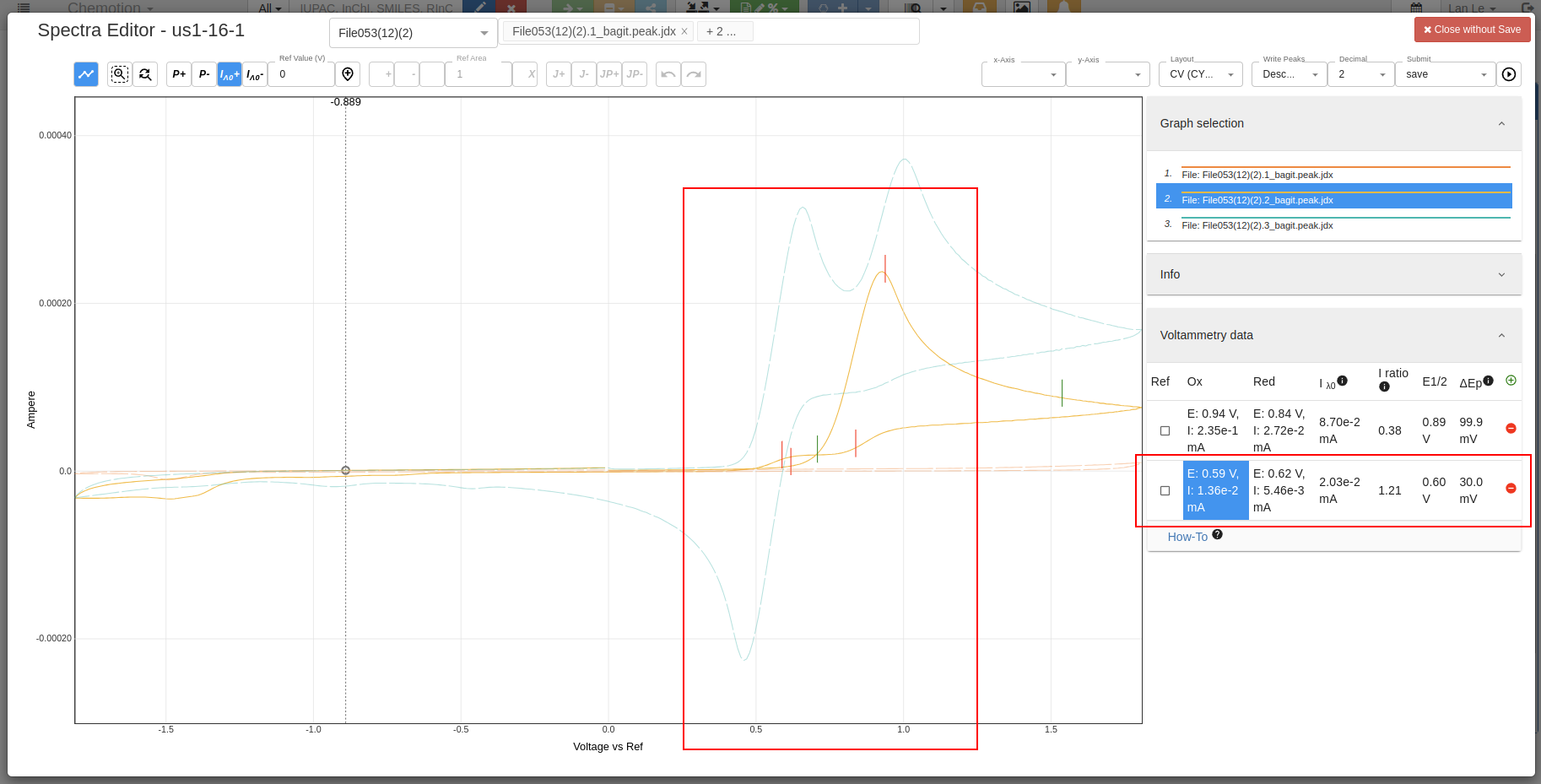

    • Values before set reference: chemspectra cv before set reference

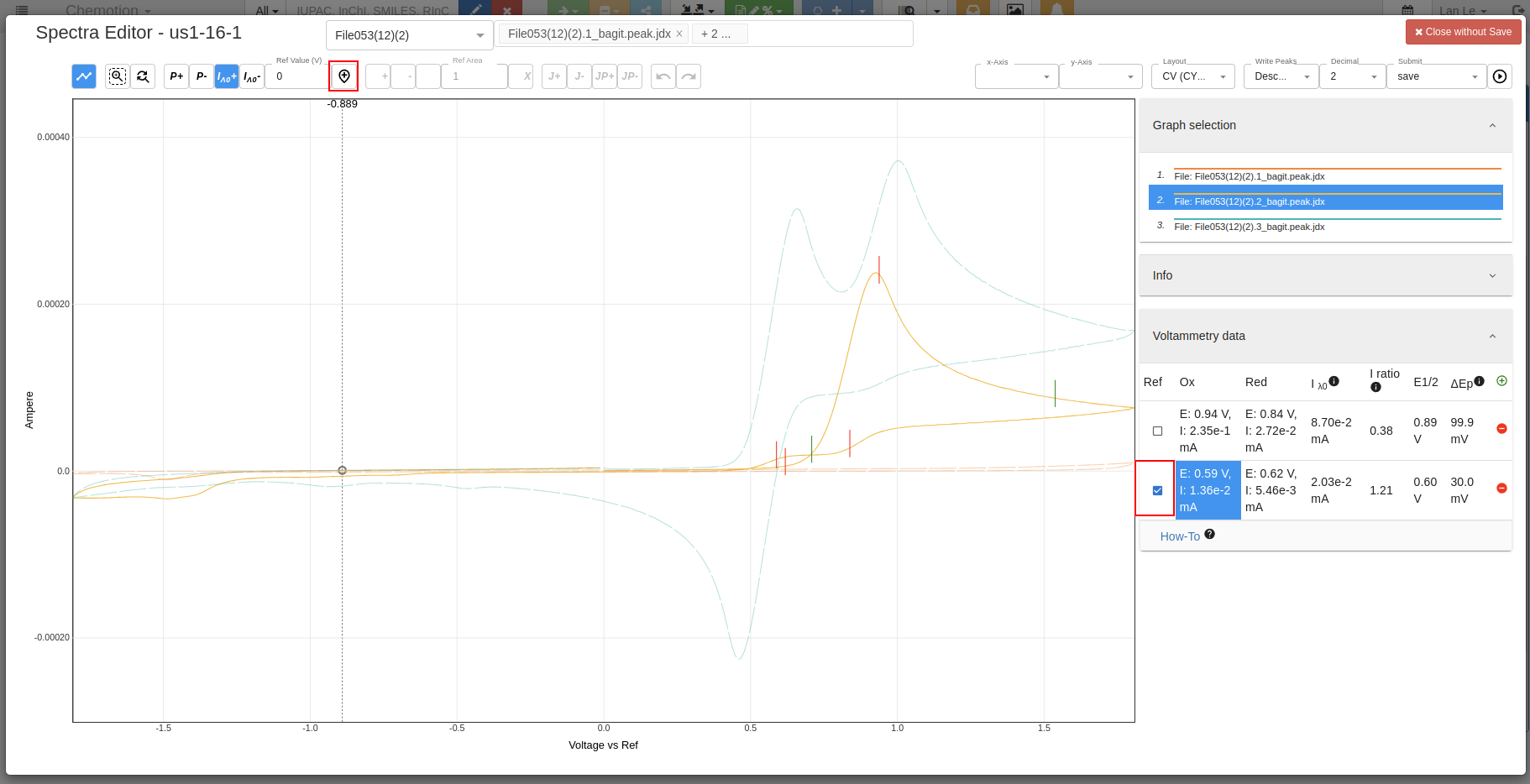

    • Select reference value by using check box, then click on Set Reference button: chemspectra cv before set reference

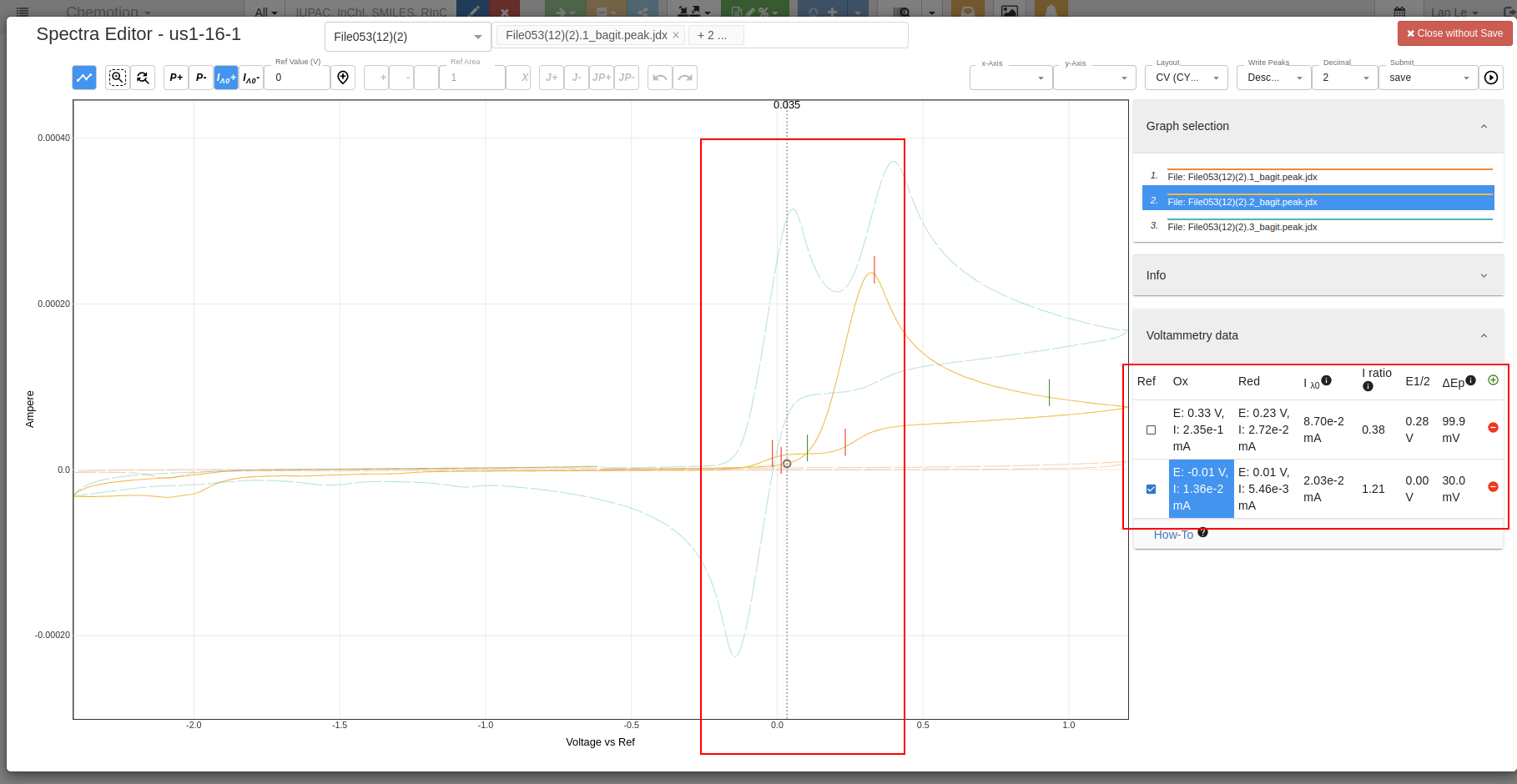

    • The values and plot of spectrum was shifted based on reference value after clicking on Set Reference button: chemspectra cv before set reference

  8. Optional Download your analyzed data as table format:

    • Open analyses tab, scroll down to Datasets section, click on which data you want to see the details: chemspectra cv view open dataset

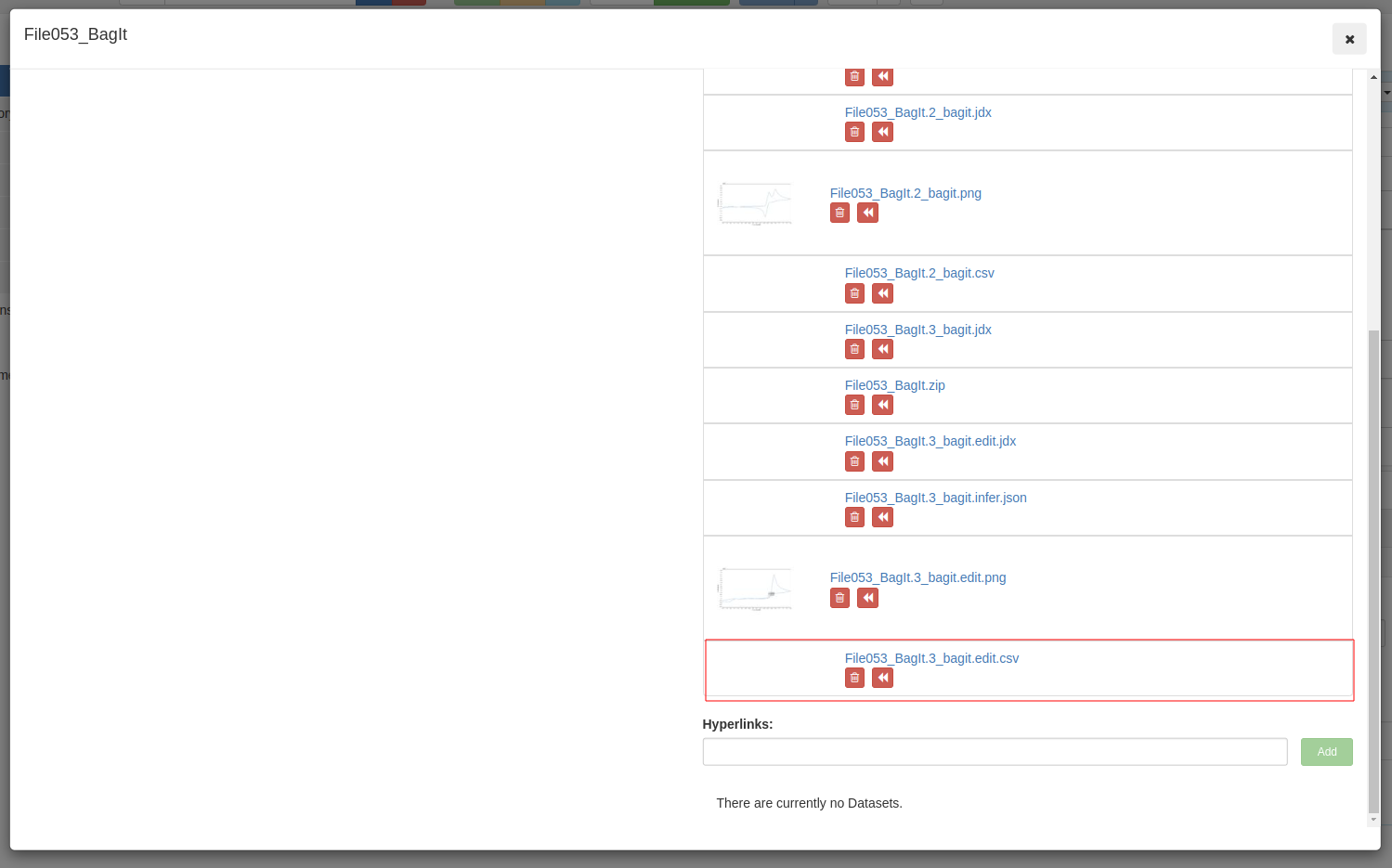

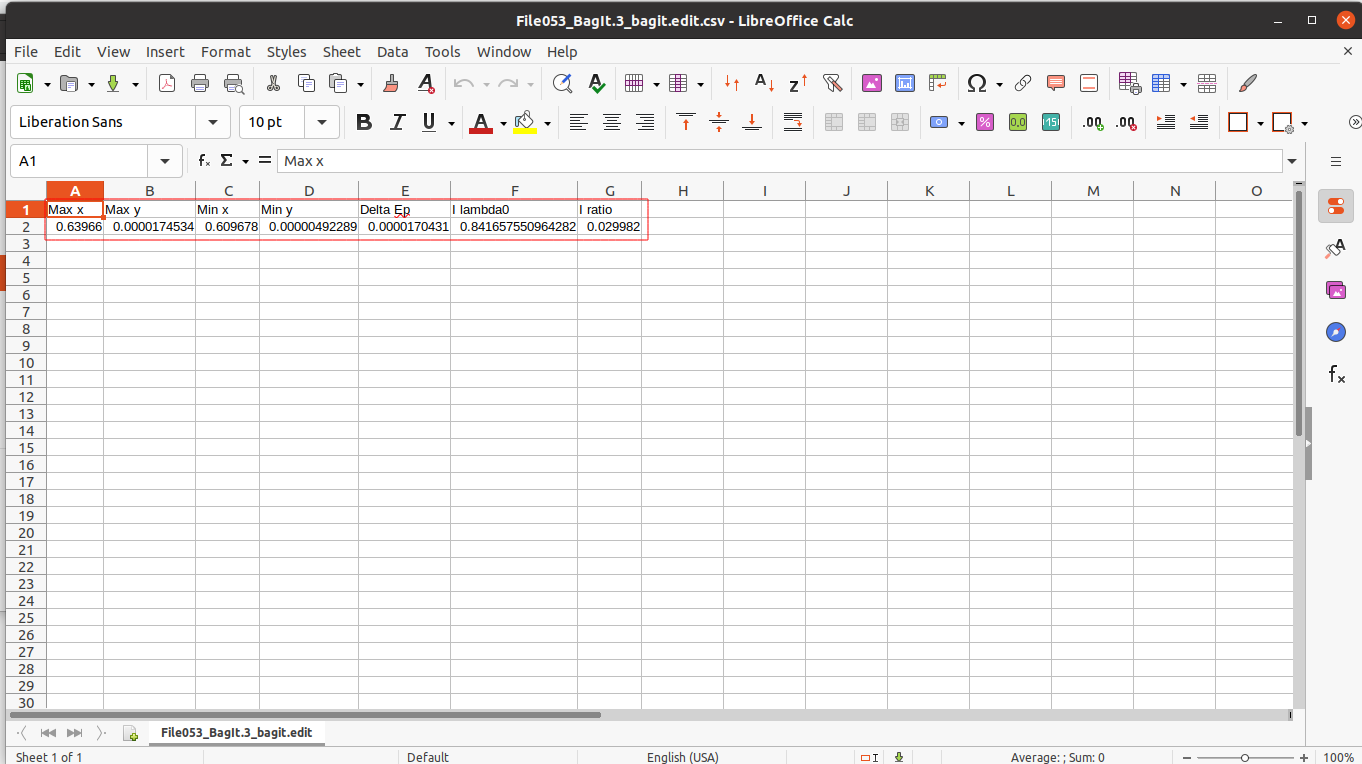

    • Select your analyzed csv file to download: chemspectra cv select csv chemspectra cv csv

Demo Video​

A video demonstrating how to work with Cyclic Voltammetry in Chemotion ELN
