Authentication in Chemotion

This page provides comprehensive instructions for all configurations related to user authentication.

The default authentication method for Chemotion is database authentication, allowing users to log in with an email address or acronym. Passwords in Chemotion are encrypted.

Database Authentication

This method involves hashing and storing a user's password in the database. When a user attempts to sign in, the system validates their authenticity by comparing the entered password, once hashed, with the stored hash. This process ensures that sensitive password information is never stored in plain text, enhancing the security of user data.

Third-Party Authentication

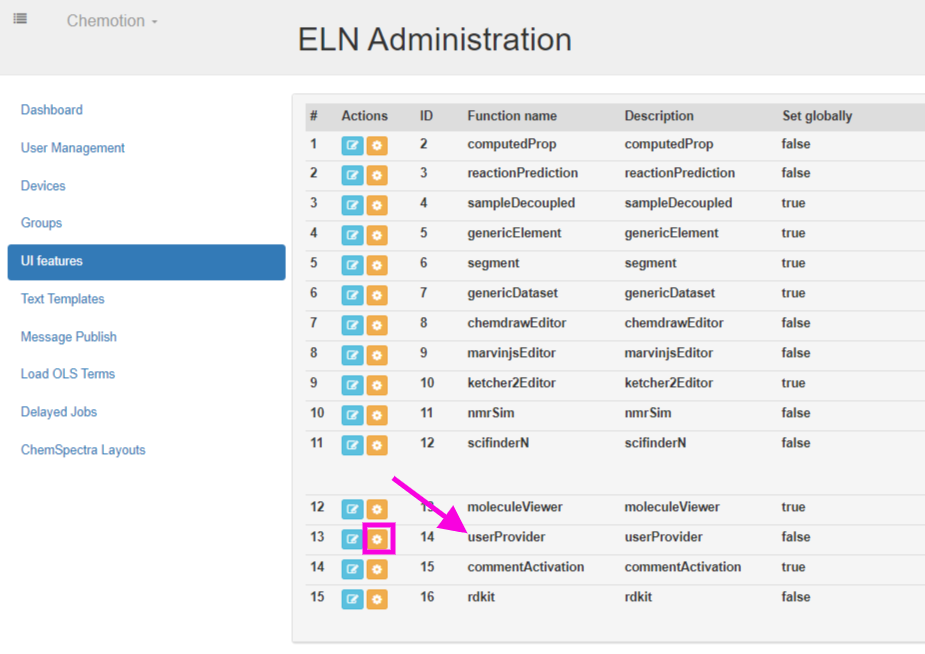

We also offer third-party authentication options, including Shibboleth, OIDC (Open ID Connect), ORCID, GitHub, and NFDI AAI. To configure these options, visit the Chemotion Administration page. On the left side, under 'UI Features', find the function labeled 'User Provider'. Click on the yellow 'Edit JSON' button to access the configuration settings.

Shibboleth

{
  shibboleth: {
    enable: false,
    uid: 'pairwise-id',
    email: 'mail',
    last_name: 'sn',
    first_name: 'givenName'
  }
}

Parameters

Parameters	Value	Description
enable	true or false
uid	'pairwise-id'
email	'mail'
last_name	'sn'
first_name	'givenName'

OIDC (Open ID Connect)

{
  openid_connect: {
    enable: true,
    host: "oidc.address.edu",
    icon: "path/to/image.png",
    issuer: "https://oidc.address.edu/path/to/issuer",
    scheme: "https",
    client_id: "myClientID",
    redirect_uri: "https://your-eln.edu/users/auth/openid_connect/callback",
    client_secret: "secret",
    token_endpoint: "/oauth2/token",
    authorization_endpoint: "/oauth2/auth"
  }
}

Parameters

Parameter	Value	Description
enable	true or false
host	address of the service
icon	path to a public image to display on the sign-in page
issuer	URL of the issuer
scheme	https
client_id	client ID
redirect_uri	your Chemotion ELN URL + '/users/auth/openid_connect/callback'
client_secret	secret
token_endpoint	/oauth2/token
authorization_endpoint	/oauth2/auth

ORCID

{
  github: {
    enable: false
    client_id: null
    client_secret: null
  }
}

Parameters

Parameters	Value	Description
enable	true or false
uid	'pairwise-id'
email	'mail'
last_name	'sn'
first_name	'givenName'

GitHub

{
  github: {
    enable: false
    client_id: null
    client_secret: null
  }
}

Parameters

Parameters	Value	Description
enable	true or false
uid	'pairwise-id'
email	'mail'
last_name	'sn'
first_name	'givenName'

NFDI AAI

In ELN 1.6, we've introduced several third-party login authentication methods, including Shibboleth and OpenID Connect. Since NFDI AAI RegAPP uses OpenID Connect, it is ready for use with ELN version 1.6 or higher. The integration of Chemotion with NFDI AAI RegAPP has been successfully tested and is now available on the labimotion test instance.

info

Instructions for applying for a client ID for Your Instance:

Please **send an email to chemotion-nfdi-aai@lists.kit.edu with the following information:

1. Your Institution name (e.g., Karlsruhe Institute of Technology)
2. Your FQDN (Fully Qualified Domain Name) (e.g., https://your-eln.edu)
3. ELN Version

{
  openid_connect: {
    enable: true,
    host: "regapp.nfdi-aai.de",
    label: "NFDI AAI",
    issuer: "https://regapp.nfdi-aai.de/oidc/realms/nfdi",
    scheme: "https",
    client_id: "myClientID",
    redirect_uri: "https://https://your-eln.edu/users/auth/openid_connect/callback",
    client_secret: "secret",
    token_endpoint: "/oauth2/token",
    authorization_endpoint: "/oauth2/auth"
  }
}

Parameters

Parameter	Value	Description
enable	true or false
host	regapp.nfdi-aai.de	address of the service
label	NFDI AAI	label of the login button
icon	path to a public image to display on the sign-in page
issuer	https://regapp.nfdi-aai.de/oidc/realms/nfdi	URL of the issuer
scheme	https
client_id	client ID	Please send an email to chemotion-nfdi-aai@lists.kit.edu
redirect_uri	your Chemotion ELN URL + '/users/auth/openid_connect/callback'
client_secret	secret
token_endpoint	/oauth2/token
authorization_endpoint	/oauth2/auth
