Local Collectors (in docker containers)

The ELN allows data to be collected automatically from a folder using the data-collector feature. This is useful for sharing files between e.g. an instrument and the ELN. On the instrument side, the (analyses, result etc.) files can be put in a (networked shared) older. On the ELN side, we can monitor this folder for any changes and import files from the instrument directly into the ELN.

Configuration outside Chemotion ELN

Once the computer that is running the Chemotion ELN (docker container) has access to the shared folder, this folder can then be mounted into the Chemotion ELN's containers. To do so:

• Mount the shared folder in the containers using the docker-compose.yml file by adding the folder as a volume in the keys services.eln.volumes and services.worker.volumes. In case you are using ChemCLI, make the changes in the docker-compose.cli.yml file.

• Once added, the docker-compose(.cli).yml file could similar to the following:

  services:
    eln:
      image: ...
      ...
      volumes:
        - ...
        - /path/to/folder/with/data:/chemotion/datacollector/instrument-name

    worker:
      image: ...
      ...
      volumes:
        - ...
        - /path/to/folder/with/data:/chemotion/datacollector/instrument-name


• We then will add this path to the config/datacollector.yml file which is located on the host in (instances/<instance-name>)/shared/pullin/config/datacollector.yml as shown below. One has to create a new config/datacollector.yml file if it does not exist.

  Note that, you can input multiple paths i.e. mount different instruments. For example, the second commented line here mounts the folder /tmp/datacollector which can point to some other instrument.

  :localcollectors:
    - :path: '/chemotion/datacollector'
  # - :path: '<%= Rails.root.join(*%w[tmp datacollector]).to_s %>'

• The ELN needs to be restarted once these changes have been made. For more information, for example, configuring the frequency for collecting the files, please check Data collector settings

Configurations in Chemotion ELN: Admin Panel

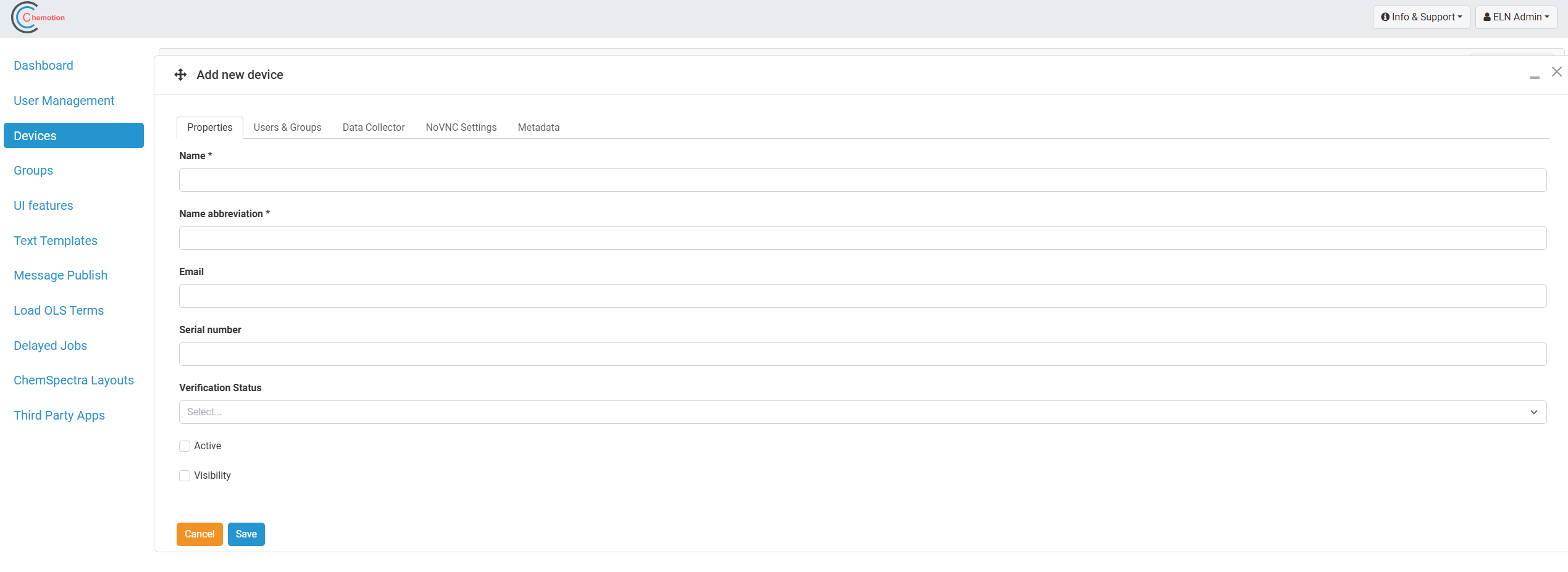

We have to navigate to Groups & Devices in the admin panel and create a new device instance. It will register the device information to the database of the Chemotion ELN.

File Collector

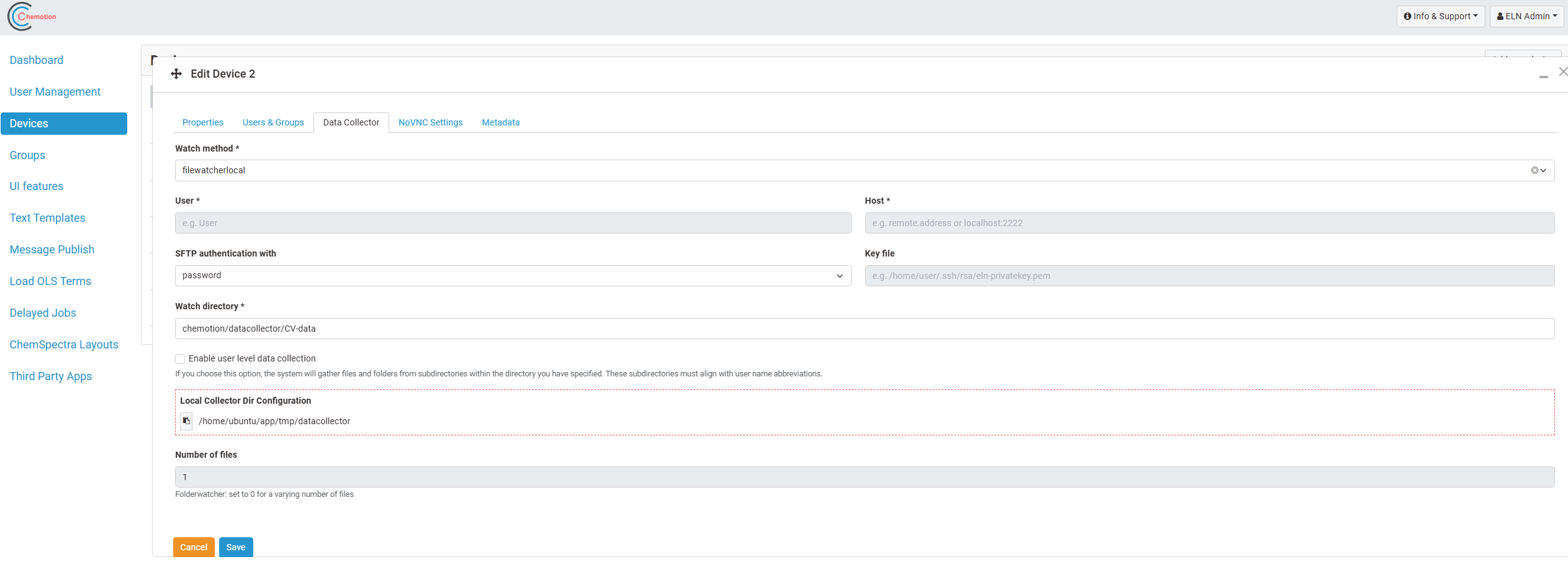

Along with that a data collector profile will be automatically generated. For the local collectors, we only need to specify the following,

• Watch Method (filewatcherlocal/folderwatcherlocal)
• Watch Directory - Specify the directory created inside the locally mounted folder. Here CV-data, for example, has been created within the mounted folder, datacollector

In this case we will configure the watch method as filewatcherlocal as we intend to collect files from the specified Watch Directory.

As the next step, files from the ./datacollector/CV-data will now keep being collected by the collector in the Chemotion ELN. We have to make sure that the name of the files start with the name abbreviation (Kürzel) of a specific user. The file will reach the inbox of that particular user. In case the name abbreviation is not valid, then the file will be discarded.

info

Please take care that you communicate name conventions to all users of the Chemotion ELN.

danger

The directories watched by the collector service will be emptied at each collection i. e. all files within the watched directories will be removed.

Folder Collector

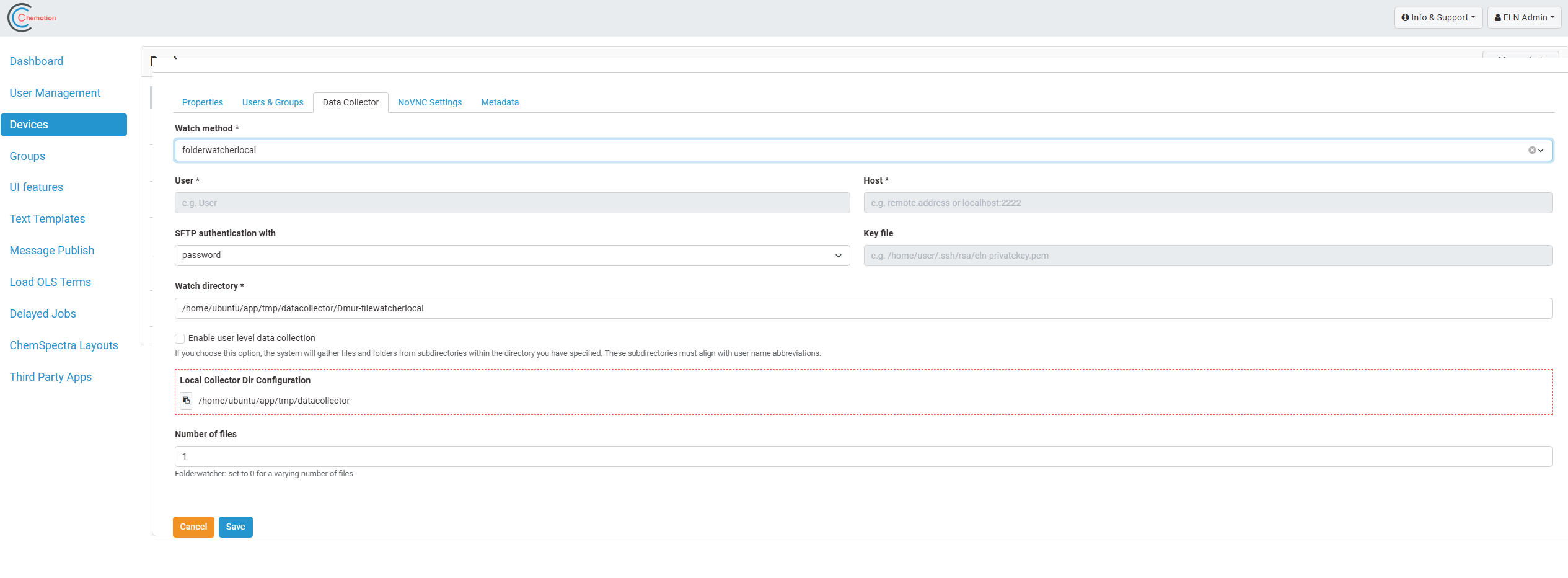

All the configurations are more or less the same as in the File Collector. Here we will need to configure the Watch Method as folderwatcherlocal.

Here is a new input to consider, i.e. Number of files. As mentioned in the info text in the Chemotion ELN, if the folders to be collected may contain a variable number of files, then we have to set it to 0. Otherwise if the number of files within the collectable folder is known, we can set it as that.

Here also we have to make sure that the name of the folder to be collected has to start with the name abbreviation (Kürzel) of a specific user.
