Inventory

info
  • An inventory collection can be shared by several users, who can move items into it or create items in it.
  • Storage temperature, expiration date and volume can be imported for chemical samples.
  • From version 4, safety phrases (H- and P-statements, GHS pictograms) can be added and removed manually in the inventory tab.

Creating Inventory for a Group​

Creating a chemical inventory that can be accessed by all members of a working group requires four steps:

  1. creating a new user,
  2. creating a collection in that user's Chemotion ELN and adding all chemicals to that collection as samples,
  3. creating a new group or adding the account to an existing group and
  4. sharing the collection with the group.

After creating an inventory, one can proceed to creating entries in it.

Creating a new user​

A new Chemotion ELN account should be created to manage the chemical database. All new chemicals will need to be created by that account (usually that account is managed by the person in charge of ordering chemicals or receiving the group's chemicals). Once a chemical has been created in that account as a sample it can be edited by any group member (for example to update the amount left in the bottle), if the collection is shared with the right privileges (more on this in the section sharing the collection with the group).
The registration process of that account is identical to registering any other new Chemotion ELN user.

Creating a new collection​

In the newly created account, a collection has to be created where all chemicals can be inserted as samples. If the group is located in different buildings, or uses different chemical subsets, multiple collections can be created for the different buildings or subsets. Each collection can be shared with one or more groups independent of one another. Once the collection is created, the chemicals that are part of the database have to be created as samples. Importing a database is possible using the import samples to collection function of the Chemotion ELN. For that purpose, an XLS or XLSX Document in the right format and containing all chemicals to be imported, must be available.
It is advisable to create the samples with all relevant information in the Properties tab, such as CAS number, concentration or molarity, density, etc. However, the information can be updated later by other users, if the collection is shared with the group at the Edit elements level (more on this in the section sharing the collection with the group).

Creating a new group​

It is advisable to share the collection containing the chemical database with a group, not with individual users, as it makes management easier. The group does not have to be created by the same account managing the chemical database. However, both can be also managed by the same account. To create a new group, choose My groups and Devices from the drop-down menu on the top right corner by clicking on the account's name next to the sign-out button. Now proceed to create a new group and then add all group members who should have access to the database of the new group. Multiple groups can be created, if different collections, containing subsets of the chemical database, are to be shared with different group members.
Note that only the person who created the group, or the account the administrator rights were transferred to, will be able to manage group members.

Sharing the collection with the group​

From the collection's menu, choose Add share and share the collection containing the chemical database with the group.

Choose the permission level with care, as it decides what group members may do with the inventory:

  • Edit elements lets members update existing chemicals β€” the amount left in the bottle, the storage location, concentration or molarity, and so on. This is the usual choice.
  • Add elements additionally lets members create new chemicals themselves. Pick this only if ordering is not centralized in the managing account.
  • Read elements is enough if members should only look up chemicals, never update them.

Whatever the permission level, set the sample detail level to full as well. Below it, members cannot edit the chemicals, and from version 4.0.1 on the ELN does not hand out the data of a sample's Inventory tab to them either β€” not even for reading β€” because it includes amounts and storage locations.

Sharing with the group rather than with each person individually means access follows group membership: adding someone to the group grants them access, and removing them withdraws it. For the whole sharing model, see Sharing Collections.

Creating Chemical Entry​

There are three ways to create an entry in the inventory:

Creating a new sample​

A chemical Entry can be created by creating a new sample as an inventory entry. Please refer to Generate Sample section, to learn how to create a new sample. Once a new sample is created, the user can check the inventory check box to enable handling of a sample as a chemical entry.

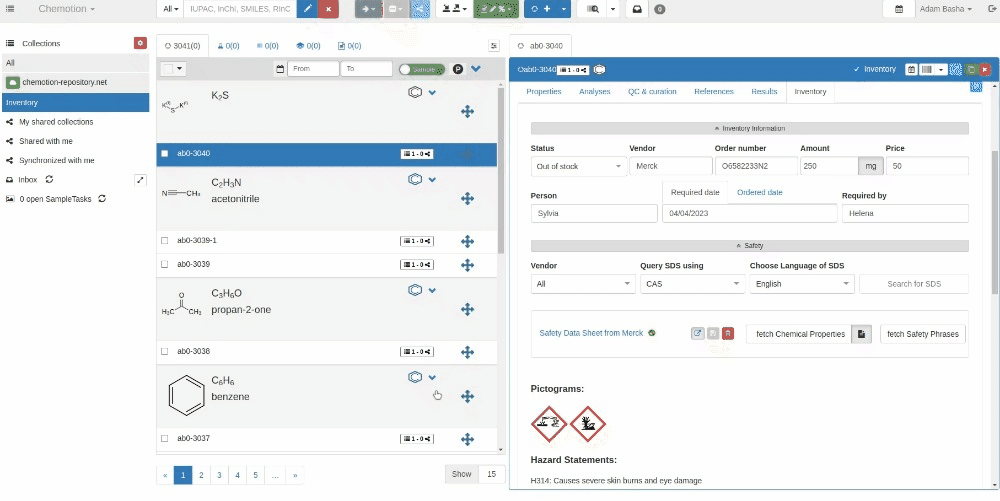

Splitting sample for chemical entry​

The process of creating a chemical entry in the Electronic Laboratory Notebook (ELN) involves initially creating a sample. However, users also have the option to generate a new chemical entry through the Split Sample feature.
For further information on how to utilize this feature, please consult the Split Sample section. When a split sample is performed, the newly generated chemical entry inherits the data from the original entry. Subsequently, users are able to modify the data according to their specific requirements.

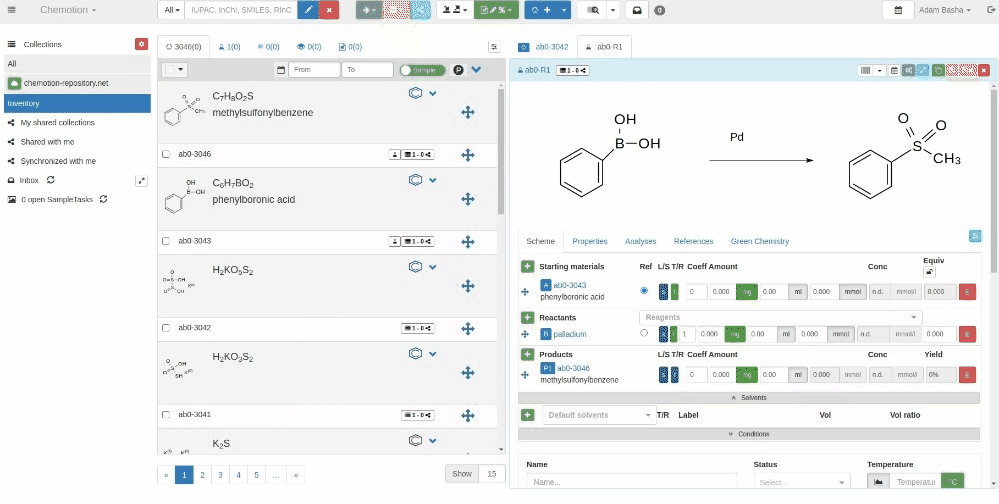

Drag and drop chemical entry​

Users have the capability to employ a drag-and-drop action to transfer a chemical entry from the inventory list to a reaction, thereby generating a subsample derived from the original chemical entry. In this process, only safety information pertaining to the subsample is generated. Subsequently, users can conveniently navigate to the inventory tab of the created subsample to access and review the corresponding safety information. The gif below illustrates the drag-and-drop action for the generation of a subsample from a chemical entry.

Managing Inventory​

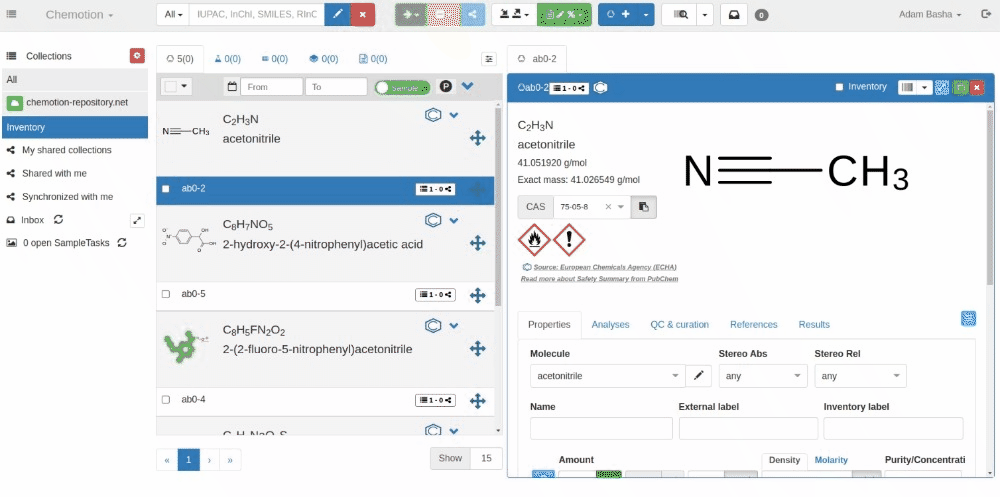

The inventory tab will appear in the Tabs Layout. The user can make the inventory tab visible by drag and drop, if it is hidden by default. Once the inventory tab is active, the user can start entering chemical data in the corresponding fields.

** The inventory tab is organized into a hierarchical structure consisting of three collapsible lists, outlined below: **

  1. Inventory Information List,
  2. Safety List,
  3. Location and Information List

This structure enables convenient navigation and organization of data for a chemical inventory entry.

Inventory Information List​

This section contains the following fields:

  • status: List of 4 options for status of the chemical (available, out of stock, to be ordered, and ordered).
  • vendor: The vendor associated with the chemical order.
  • order number: The order number of the chemical.
  • product number: The vendor's product number for the chemical.
  • price: The price of the ordered chemical.
  • person: Contact person associated with the chemical.
  • required date: The date when person or entity required the chemical.
  • ordered date: The date when the chemical was ordered.
  • expiration date: The date given by vendor when the chemical will expire.
  • delivery date: The date the chemical was delivered.
  • opening date: The date the container was opened.
  • required by: The person or entity that required or ordered the chemical.
  • amount: Specifies the amount of the chemical, with unit (mg, g, or ΞΌg).
  • volume: Specifies the volume of the chemical, with unit (l, ml, or ΞΌl).
  • storage temperature: The temperature given by vendor at which the chemical should be stored. The unit button switches between Β°C, Β°F and K, converting the value.
  • inventory label: The label assigned to the chemical within its collection.
Decimal commas, from version 4.0

The amount, volume, storage temperature and flash point fields accept a comma as the decimal separator, so 2,5 is stored as 2.5. Earlier versions ignored the comma, which made such a value impossible to enter. Thousands separators are not supported: 1,234 is read as 1.234, and a hint under the field says so.

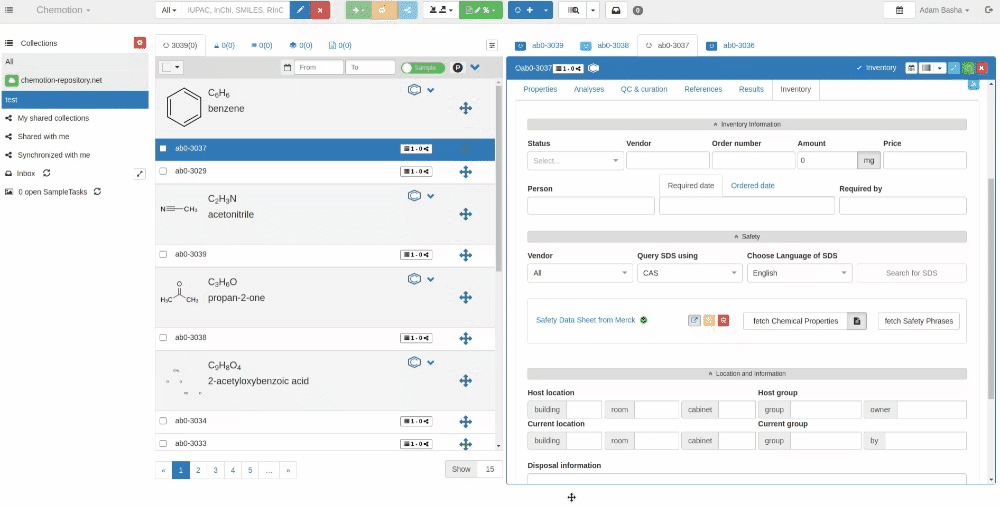

Safety List​

  • The Safety section is an interactive feature that allows users to search for and access safety data sheets (SDS) and safety phrases related to specific chemicals.

  • Users can select the vendor associated with their query, choosing from the drop-down list: Sigma-Aldrich, Thermofisher and All vendors (PubChem). The last searches PubChem's own list of vendor sheets rather than the vendors' websites, and presents the results grouped by vendor.

  • The button provides a dropdown list for users to select whether to search using the CAS (Chemical Abstracts Service) number, the common name, or the Product Number of the chemical.

  • The dropdown list offers three language options: English, German, and French. If no results are found with the chosen language, results will be displayed with the default query language (English).

  • After selecting the search parameters, users can initiate the search query by clicking the button.

  • The search results will be displayed, each titled Safety Data Sheet from <vendor> - <number>, and users can click one to open a new tab directing them to the vendor's safety data sheet.

  • It is recommended for users or administrators to first verify if the displayed results are associated with the desired chemical.

  • If results match the specific chemical, users can save the safety sheet to the Electronic Laboratory Notebook (ELN) by clicking the save button next to the relevant result tag. A green check mark icon will appear next to the result element tag, if SDS is saved successfully, and the sheet moves into the Safety Sheets saved in the database list below.

  • Once saved, the sheet can be read with Extract from sheet, described below.

  • Users have the option to delete the saved data sheet by clicking the delete icon button.

  • Up to five sheets can be saved per sample, counted as n of 5 above the saved list. Searching stays available throughout, and a sheet already saved is not saved twice.

  • Additionally, users can access the vendor's product webpage by clicking the external link icon button.

  • Each saved sheet carries an Extract from sheet button, which reads the sheet itself rather than querying the vendor again.

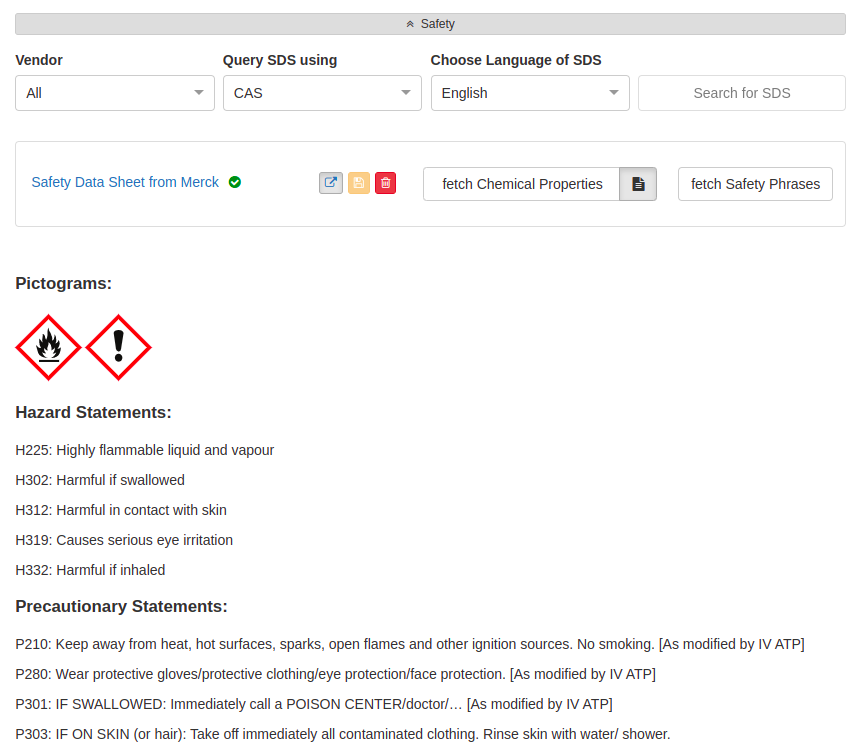

    safety bar

Extract from sheet​

From version 4.0, Extract from sheet replaces the former fetch safety phrases and fetch Chemical Properties buttons. It reads the text of a sheet already saved against the chemical and takes two things from it:

  • the H and P codes from the label-elements section, along with the pictograms those codes imply, which go into the safety phrases editor;
  • the physical and chemical properties from section 9 β€” melting point, boiling point, flash point, density, form, color, refractive index and solubility among them β€” some of which are written straight into the sample's Properties tab.

The button sits on every row of the saved list; on a search result it is disabled until the sheet is saved. While it runs it reads Reading sheet…, and one sheet is read at a time. A notice afterwards says what was found, what was set, and what was skipped because it was not in a unit the sample accepts.

Everything read is kept with that sheet and can be reviewed later with the document button beside it, which opens Fetched Chemical Properties.

Properties are saved at once; phrases are not

Properties written into the Properties tab are sent to the server immediately, as a save of the whole sample β€” so any unsaved edits elsewhere on that sample are written too. The H and P phrases and the pictograms behave differently: they are placed in the editor and need the sample to be saved before they persist.

An extraction replaces the existing phrases

When codes are found, they replace the whole set of H and P phrases and pictograms, rather than being added to it. When none are found, what is already there is kept.

Sheets from Sigma-Aldrich (also Merck and MilliporeSigma) and Thermo Fisher (also Fisher Scientific, Acros Organics and Alfa Aesar) are recognized, in English or German. Recognition is based on the content of the sheet rather than the vendor recorded at upload, so a manually uploaded sheet from one of those vendors is read as well. A sheet that cannot be used β€” a scanned one with no text, or another vendor's layout β€” is reported with the reason.

note

Despite the wording used on screen, no AI is involved: the ELN reads the text layer of the PDF. An instance may be configured to hand this to a separate PDF text service; where it is, and that service is unavailable, extraction reports an error rather than falling back to reading the sheet locally.

Adding safety phrases manually​

Safety phrases do not have to come from a safety data sheet. The safety section contains an editor that lets users curate the safety phrases of a chemical entry by hand, which is useful when no safety data sheet (SDS) can be found, when an extraction returns incomplete results, or when a substance is prepared in-house.

The editor sits under the heading Safety phrases and pictograms at the foot of the safety section. When nothing has been set it starts collapsed, labelled none added yet, and each of its three parts β€” Hazard Statements, Precautionary Statements and Pictograms β€” likewise starts collapsed while it is empty and opens by itself once it has content. Each heading and each row carries a copy button.

It is organized into three parts:

  • Hazard Statements β€” the H-codes of the chemical (for example H225).
  • Precautionary Statements β€” the P-codes of the chemical (for example P210).
  • Pictograms β€” the GHS hazard pictograms (GHS01 to GHS09), displayed as images.

Safety phrases editor

The editor panel is limited in height and scrolls internally, so a chemical with many statements does not push the rest of the inventory tab out of view. The screenshot above shows all three sections at once; in the running ELN the lower sections may have to be scrolled into view.

adding a phrase​

  1. Open the inventory tab of the chemical entry, expand the safety list, then Safety phrases and pictograms and the part to be edited β€” each is collapsed while it is empty.
  2. Click the search field of the section that should be extended (hazard statements, precautionary statements, or pictograms).
  3. Type a code or a part of the phrase text. The drop-down filters the list of available entries while typing; codes that are already assigned to the chemical are not offered again.
  4. Select the desired entry from the drop-down. It is added to the list below the search field immediately.
  5. Click the save button at the bottom of the inventory tab to persist the changes together with the rest of the inventory data.

New entries are appended to the end of their list rather than sorted into it, so the order of the list reflects the order in which the phrases were added.

The selectable codes are taken from the GHS dictionaries shipped with the ELN. Besides the plain H- and P-codes, these dictionaries also contain the combined codes (for example H300+H310 or P301+P310) and the European supplemental hazard statements (EUH codes), so these can be selected as a single entry instead of being assembled from their parts.

removing a phrase​

Each entry in the hazard and precautionary lists carries a delete button , and each pictogram card carries the same button in its upper right corner. Clicking it removes that entry from the chemical entry. As with adding a phrase, the removal becomes permanent only after the inventory tab is saved.

caution

A successful extraction replaces the complete content of the editor: if Extract from sheet finds H and P codes, they overwrite the lists and the pictograms, so manual additions and removals made before it are lost. It is therefore advisable to extract first and to refine the result by hand afterwards.

An extraction that finds no codes leaves the existing phrases untouched β€” only a notice is shown and the editor keeps its content.

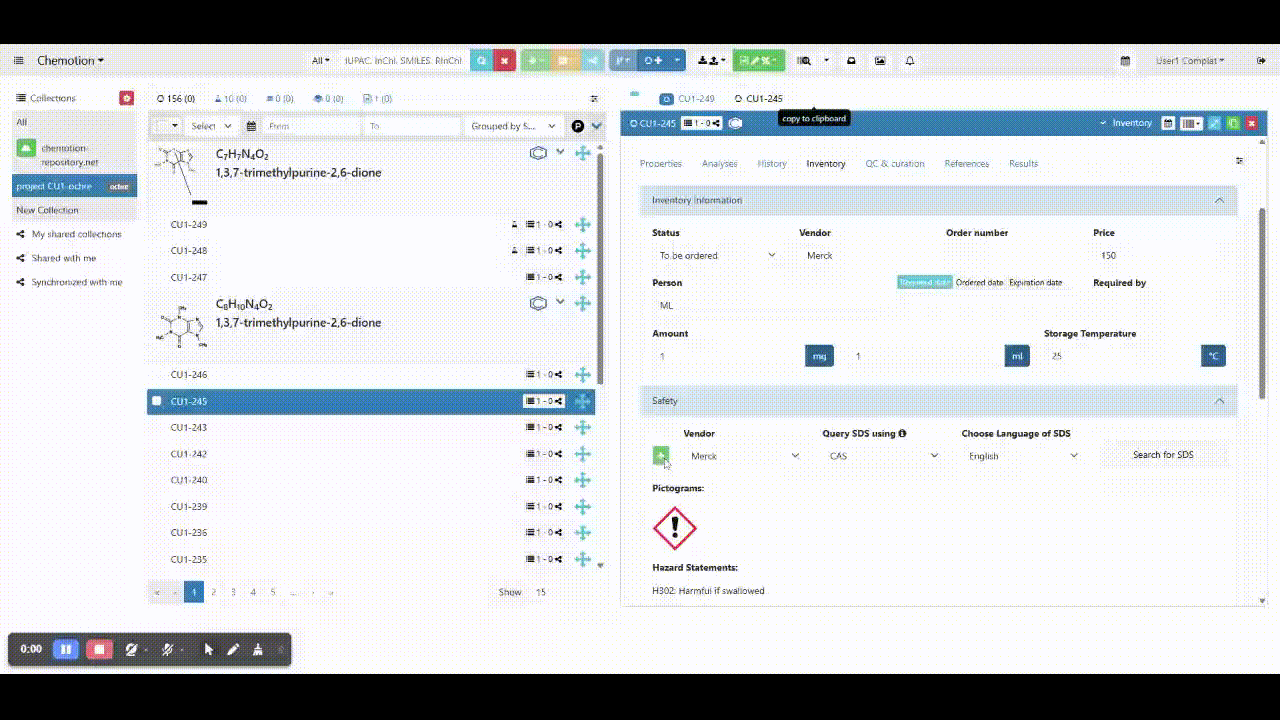

Attach Safety Sheets manually​

This feature allows users to manually attach Safety Data Sheets (SDS) to chemical samples. It provides a user-friendly interface for uploading files and entering relevant metadata, ensuring that safety information is properly associated with the chemical.

Overview​

The manual SDS attachment functionality allows users to:

  • Upload a PDF file as the SDS.
  • Provide metadata such as product number, vendor name, product link, and safety sheet link.
  • Validate some inputs to ensure data integrity.

Key Features​

  • File Upload: Restricts file uploads to PDF format.
  • Input Fields:
    • Product Number
    • Vendor Name
    • Product Link (optional)
    • Safety Sheet Link (optional)
  • Validation:
    • Ensures required fields are filled.
    • Validates URLs for product and safety sheet links.
    • Displays error messages for invalid inputs.

Workflow​

  1. Click the green button at the left of the safety control row, whose tooltip reads Attach a safety data sheet from your computer.
  2. Fill in the required fields and upload a PDF file.
  3. Click "Submit" to save the attachment.

Validation Rules​

  • File Type: Only PDF files are allowed, up to 10 MB.
  • Product Number: Between 2 and 25 characters.
  • Vendor Name: Between 2 and 20 characters β€” lowercase letters, digits and hyphens, starting with a letter, with no hyphen at either end and none doubled.
  • URLs: Must be valid URLs if provided.

A manually attached sheet counts toward the limit of five sheets per sample, and can be read with Extract from sheet like any other.

Error Handling​

  • Displays error messages for invalid inputs.
  • Prevents submission if required fields are missing or invalid.

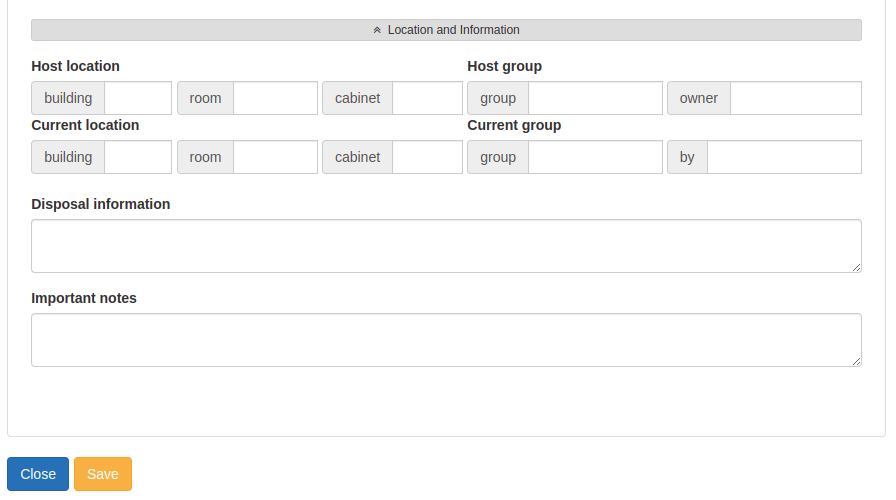

Location and Information List​

The Location field is divided into 2 subsections host location, host group, which reflects information about owner of chemical and current location, current group in case chemical is borrowed by another group/person. Both subsections have overlapping fields.

  • building, room, cabinet where the chemical is stored.
  • group: related to the chemical.
  • owner: the person responsible for the chemical.
  • by: the person who borrowed the chemical.

location and information list

User can use Disposal information field to save any information related to the disposal of the chemical or use important notes field to save any other relevant information. The user can click the save button after making any changes or updating any field inside the inventory tab to save the changes. The save button is located at the bottom of the inventory tab.

Import and Export Chemicals​

The Import and Export of chemical data functionality has been integrated into the core ELN export/import data feature within the Chemotion ELN platform. For a comprehensive understanding of the fundamental procedures involved in importing and exporting various elements and samples within the ELN system, users can check the Import and Export data section. Users are provided with the flexibility to choose between exporting/importing individual chemical samples or multiple selected samples. Export and import are reached through two separate paths:

  • Export uses the Export button in the collection toolbar Export Menu, which offers Export samples from selection and Export reactions from selection. Chemical entries are exported with the Export samples from selection option.
  • Import is not part of the toolbar. It is started from the dropdown menu next to a collection's name in the collection tree on the left, using the Import samples to collection entry.

Chemical samples are imported from an XLS/XLSX sheet and exported as XLSX or SDF.

  1. Export Chemicals
  2. Import Chemicals

Export Chemicals​

To initiate the export of a chemical sample, the user selects the chemical entries in the collection and picks Export samples from selection from the Export button in the toolbar. This opens the Select Data to Export dialog, in which the fields to be exported are grouped into sections: Sample properties, Molecule properties, Reaction properties, Wellplate and well properties, Analyses, Chemicals, and Components. The Chemicals group holds the inventory fields (status, vendor, order number, amount, price, person, required date, ordered date, expiration date, delivery date, opening date, storage temperature, required by, safety sheet link, product link, pictograms, h statements, p statements, host building, host room, host cabinet, host group, owner, current building, current room, current cabinet, current group, borrowed by, disposal info, and important notes) and has its own Select all checkbox, so all chemical properties can be selected at once. Additionally, the user can opt to include further sample or molecule properties to the exported sheet. To run the export, press and choose either XLSX Export or SDF Export. An example of export chemical process is shown below.

Import Chemicals​

To start the import of chemical samples process, users should follow these steps:

  • In the collection tree on the left, open the dropdown menu next to the name of the collection the chemicals should be imported into. It contains the entries Reference Report and Import samples to collection.
  • Click Import samples to collection. The dialog Import samples from file to {collection name} opens, which is the interface for uploading the chemical sheet. There is no separate chemical import: chemical entries are imported through this same sample import, using the chemical columns of the template below.
  • It is strongly recommended that users utilize the provided chemical template below, as importing chemicals necessitates specific data points. In order to import a sample into Chemotion ELN, it is generally required to have at least one of the following columns present in the import data: Canonical SMILES (SMILES) or Molfile. While the remaining columns are optional, providing more details is encouraged for comprehensive record-keeping.
  • Additionally, users have the capability to import safety data sheets into Chemotion ELN by entering relevant information into the designated fields such as safety data sheet and vendor. Please note that this option is presently compatible only with the Merck vendor.
  • Importing is also feasible for samples and chemicals that do not possess a chemical structure (referred to as decoupled samples). In such instances, users should indicate the value yes in the column of decoupled. If the sample has chemical structure, it is imperative to ensure that any of the columns relevant to the chemical structure, such as molfile and canonical SMILES contain valid data.
Recommendation

For the import process of a chemical inventory entry, Amount in the inventory tab should be entered using the column header labeled Amount, which refers to the amount of the chemical inventory entry in grams.

The Target/Real Amount column headers, however, refers to the Amount field in the Sample Properties tab, which is specific to the sample and not related to the inventory entry.

Following these steps enables the comprehensive import of chemical samples while maintaining the integrity of essential data for efficient management within the Chemotion ELN system. An example of import chemical process is shown below.
